Human sperm analysis

Human sperm analysis

Medical Electronic Systems (MES) is a leading edge company specializing in rapid, automated semen analysis.

  • Fast, simple and accurate semen testing in less than one minute
  • WHO 3th, WHO 4th or WHO 5th semen parameters are reported in addition to derived and total/ejaculate parameters
  • Automatically reads fresh, frozen, washed and post-vasectomy samples
  • On-screen visualization of the semen sample
  • Variable optical magnification
  • Record video clips and capture images
  • Built-in printer provides a paper copy semen analysis report
  • “High Sensitivity” test mode for oligo-, asteno- and azoospermia determination
  • Disposable testing capillary is biologically safe and can be conveniently used in virtually any testing environment
  • Built in LIS interface
  • Integrated self-testing and self-calibrating features

Sperm quality analyzers line

  • SQA-Vision automated semen analyzer — fast and simple semen testing, on-screen visualization, 5th Edition of WHO sperm parameters

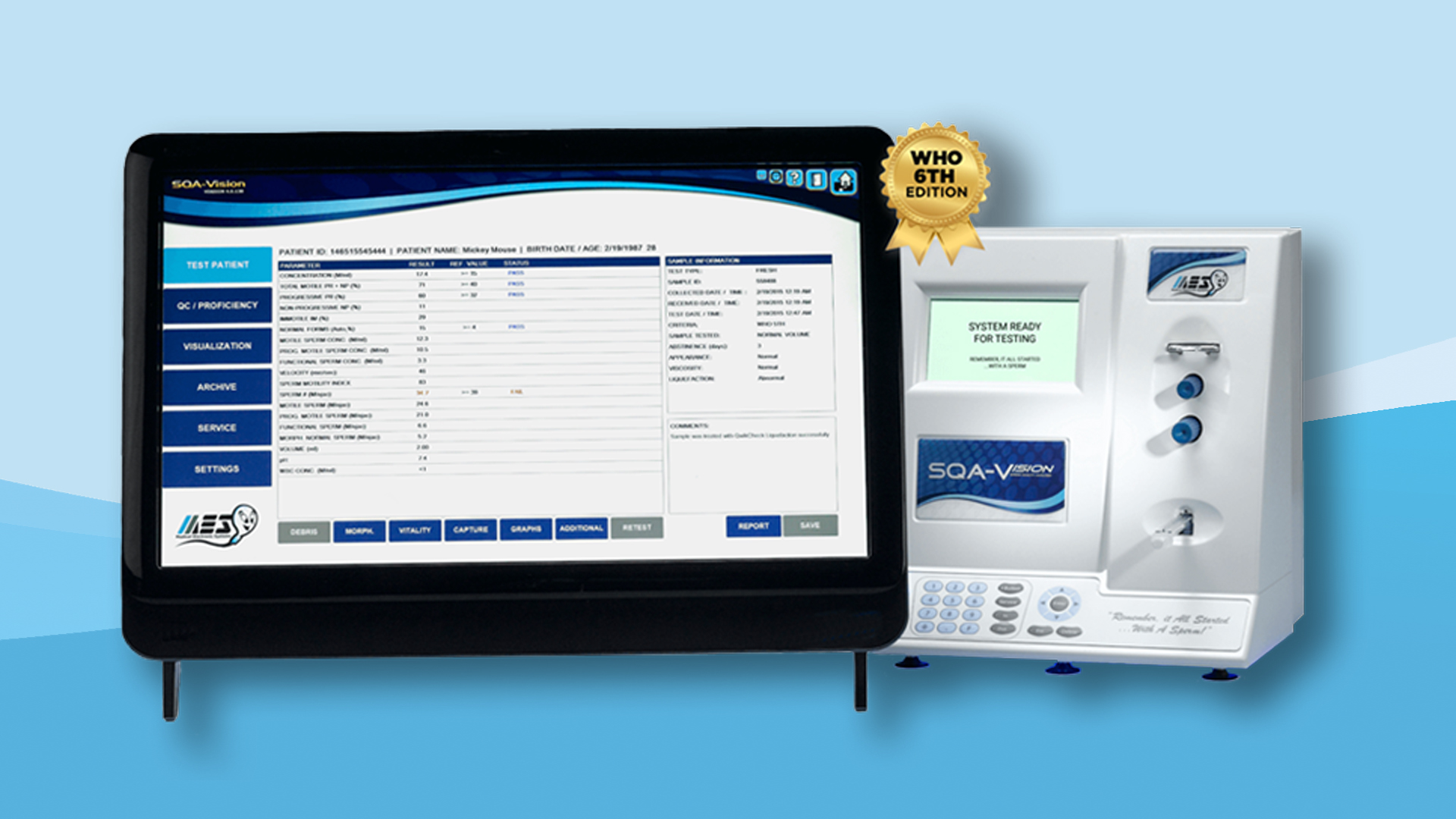

    SQA-Vision Sperm Quality Analyzer
  • SQA-V automated sperm quality analyzer, reads fresh, frozen, washed and post-vasectomy sperm samples, built-in printer

    SQA-V Sperm Quality Analyzer
  • QwikCheck Gold — accurate semen testing in less than one minute, “High Sensitivity” test mode for oligo-, asteno- and azoospermia determination

    QwikCheck Gold Sperm Quality Analyzers

Parameters tested

ParameterSQA-VisionSQA-V QwikCheck
Gold
5th Edition of WHO Parameters
4th Edition of WHO Parameters
3rd Edition of WHO Parameters
Total Sperm Concentration (TSC)
Motility (PR+NP)
Progressive Motility (PR)
Non-progressive Motility (NP)
Immotility (IM)
Calculated Normal Morphology
Progressive Motile Sperm Concentration (PMSC)
Functional Sperm Concentration (FSC)
Sperm Motility Index (SMI)
Average Velocity
Total Sperm
Total Motile Sperm
Total Progressive Motile Sperm
Total Functional Sperm

General specification

FeaturesSQA-VisionSQA-VQwikCheck
Gold
Auto-calibration/self-test
Built-in printer
Video microscope Visualization
Touch-screen interface
Option to print visual images in test report
Patient archive
All-in-one computer with SQA-Vision software
PC compatibility with V-Sperm III software
PC compatibility with Vision SQA and Vision Sperm software
Manual data entry in the PC
PC compatibility with Excel
Fresh semen sample
Option to select specimen type: frozen, washed
Option to select specimen type post-vasectomy
Swim-up, density gradient semen samples
Longevity and vitality testing
The manufacturer reserves the right to change the designs and specifications of its products without prior notice.
